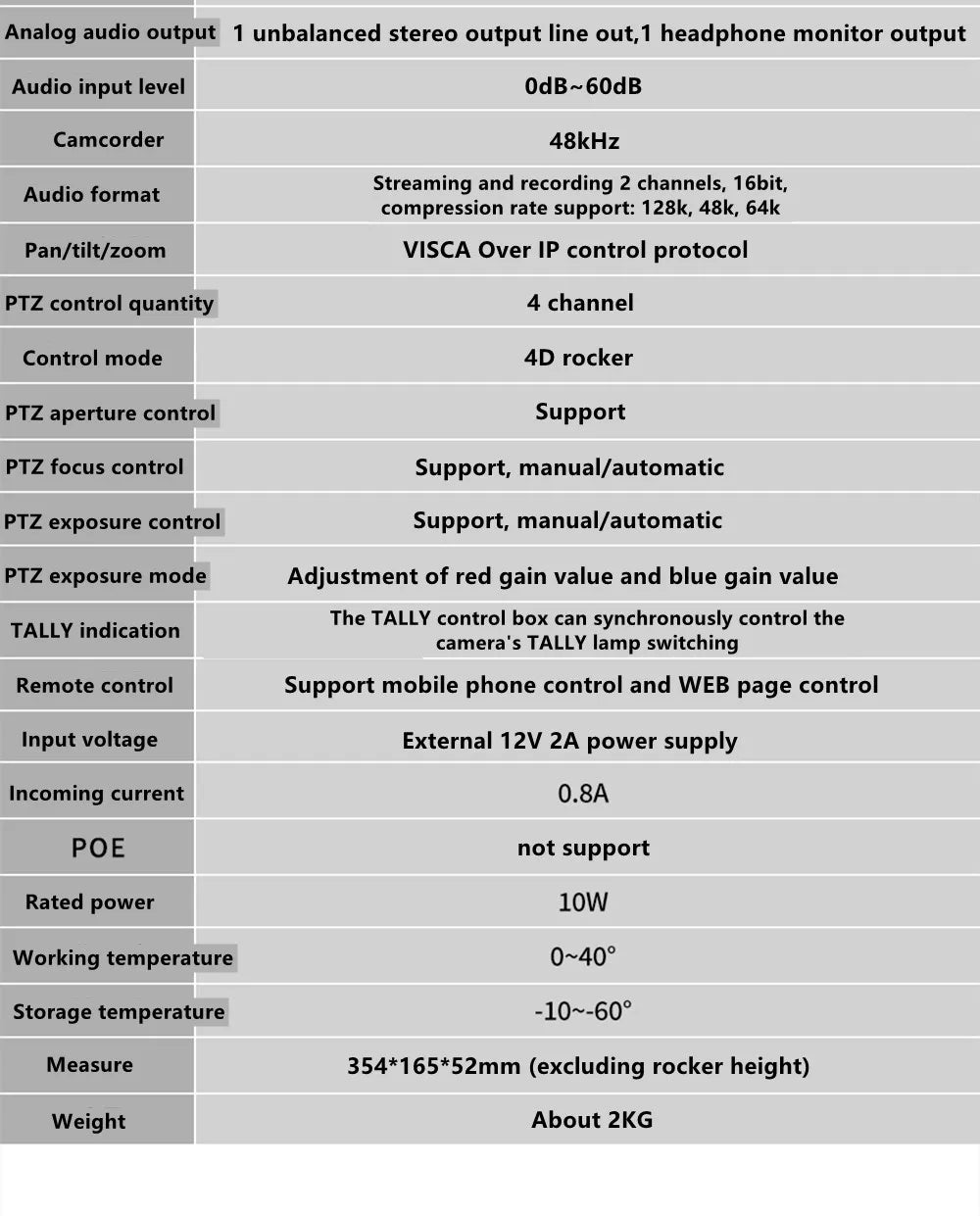

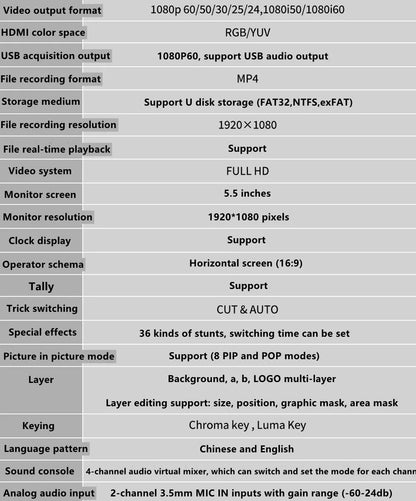

SPECIFICATIONS

Audio sampling rate: 48kHz

Brand Name: NoEnName_Null

Clock display: support

Compatible device: Streaming Box,Action Cameras,PTZ Camera,TV box,Cameras,Mixer Sound,Game Consoles,LED Screen,Laptops,Projector,Tablets,Monitor

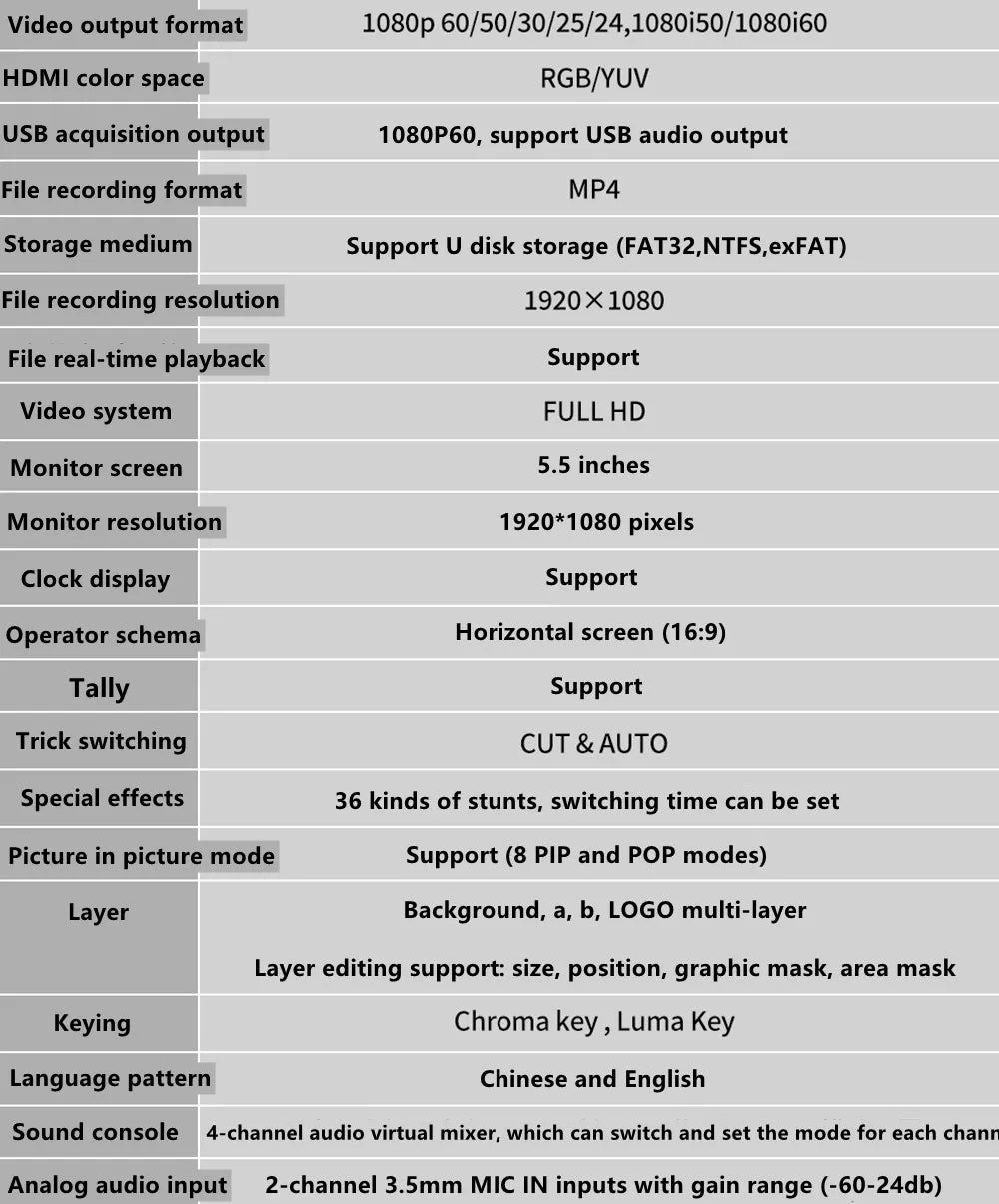

File recording format: MP4

HDMI color space: RGB/YUV

Hign-concerned Chemical: None

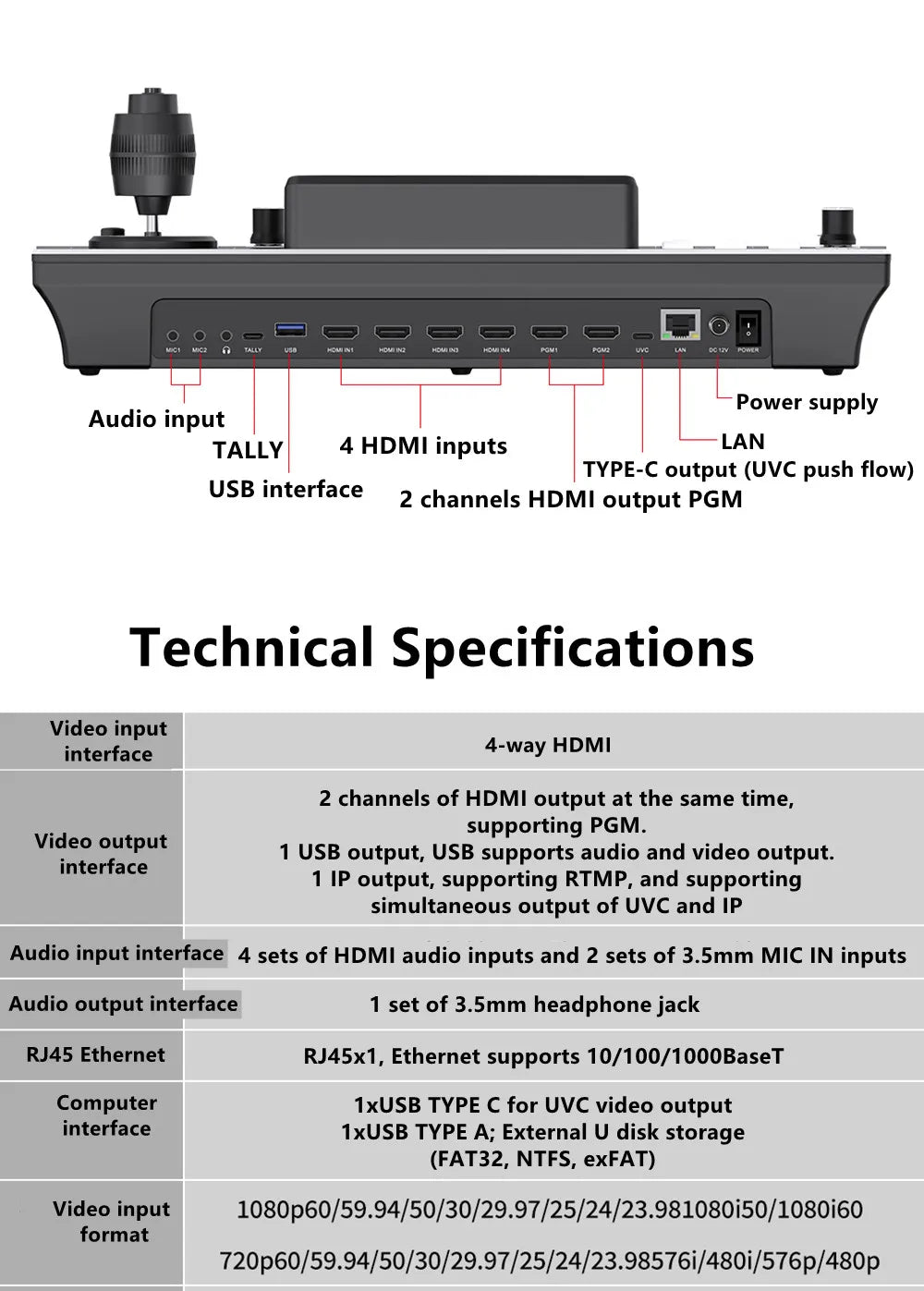

Input Interface: HDMI

Input voltage: external 12V 2A power supply

Keying: Chroma key, Luma Key

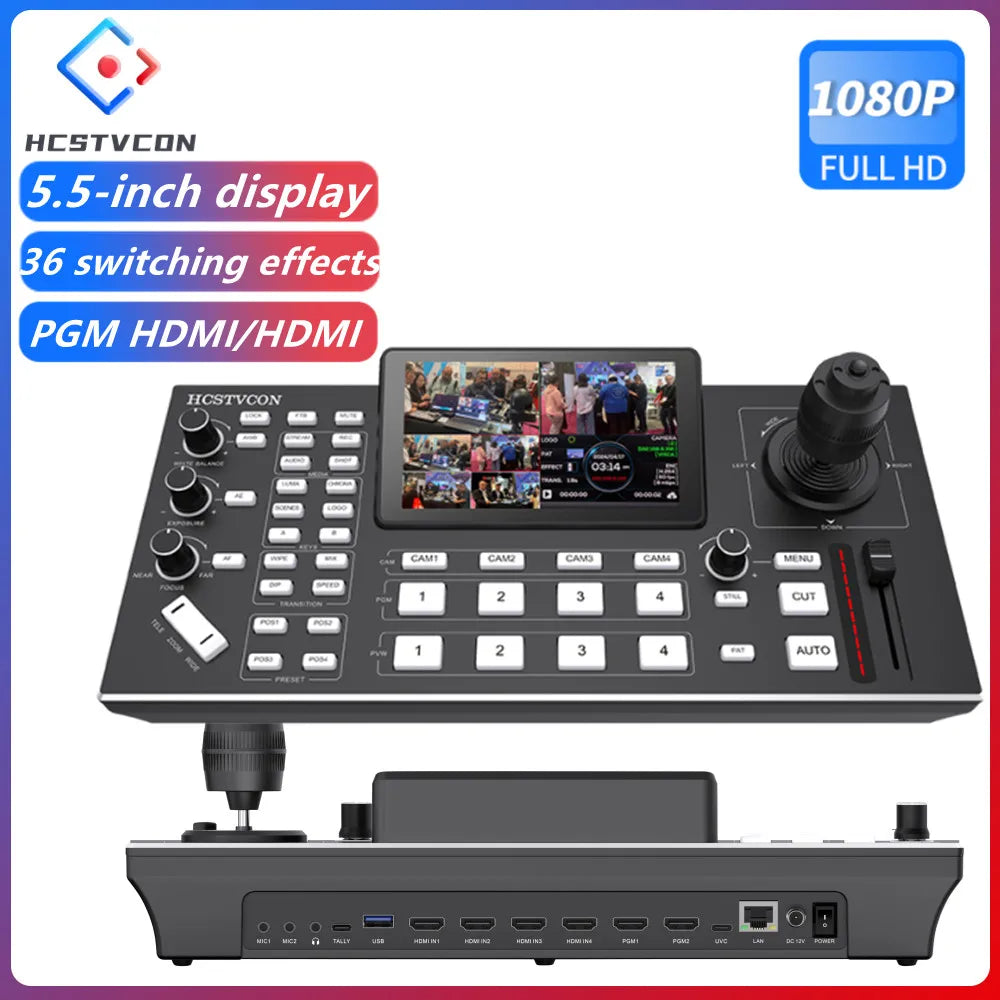

Model: DBT04RH

Number Of Channels: 4-Channel

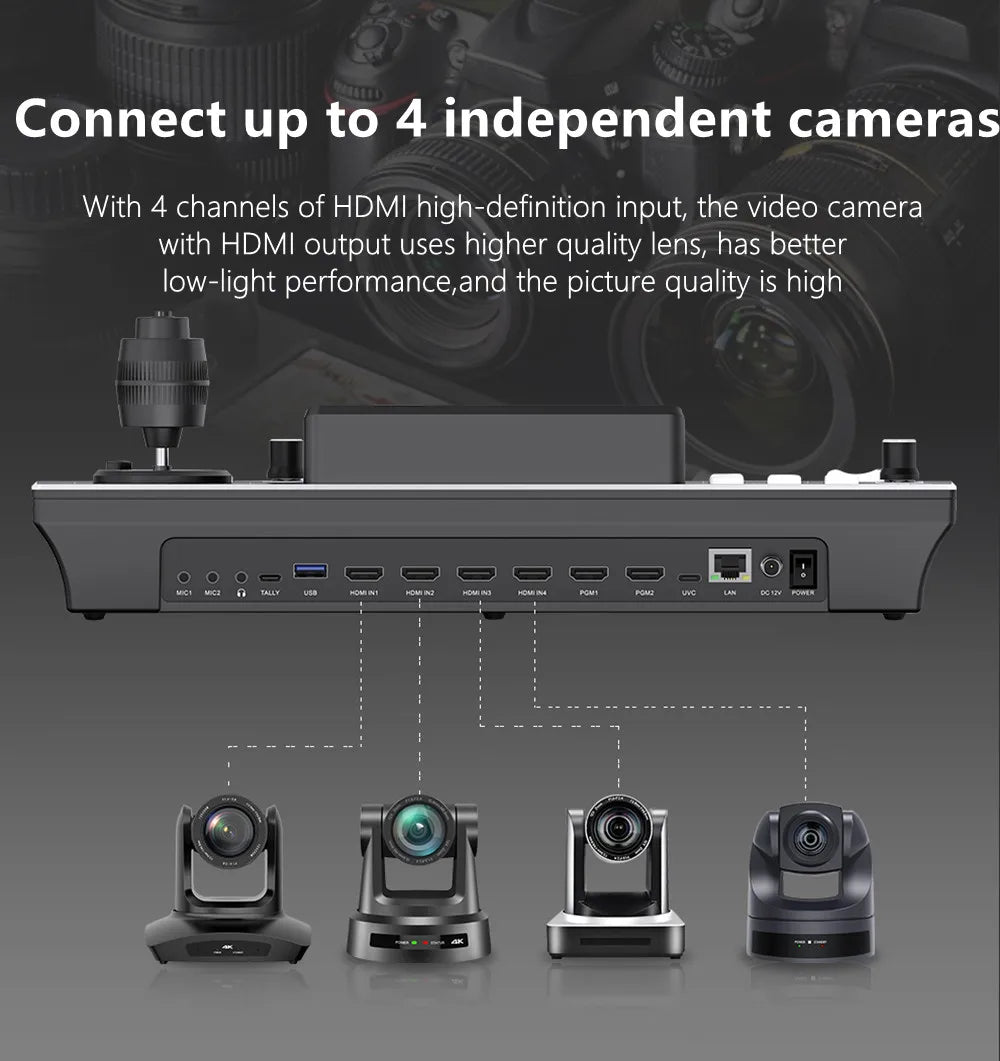

Number of HDMI: 4

Number of SDI: 0

Operation mode: landscape screen (16:9)

Origin: Mainland China

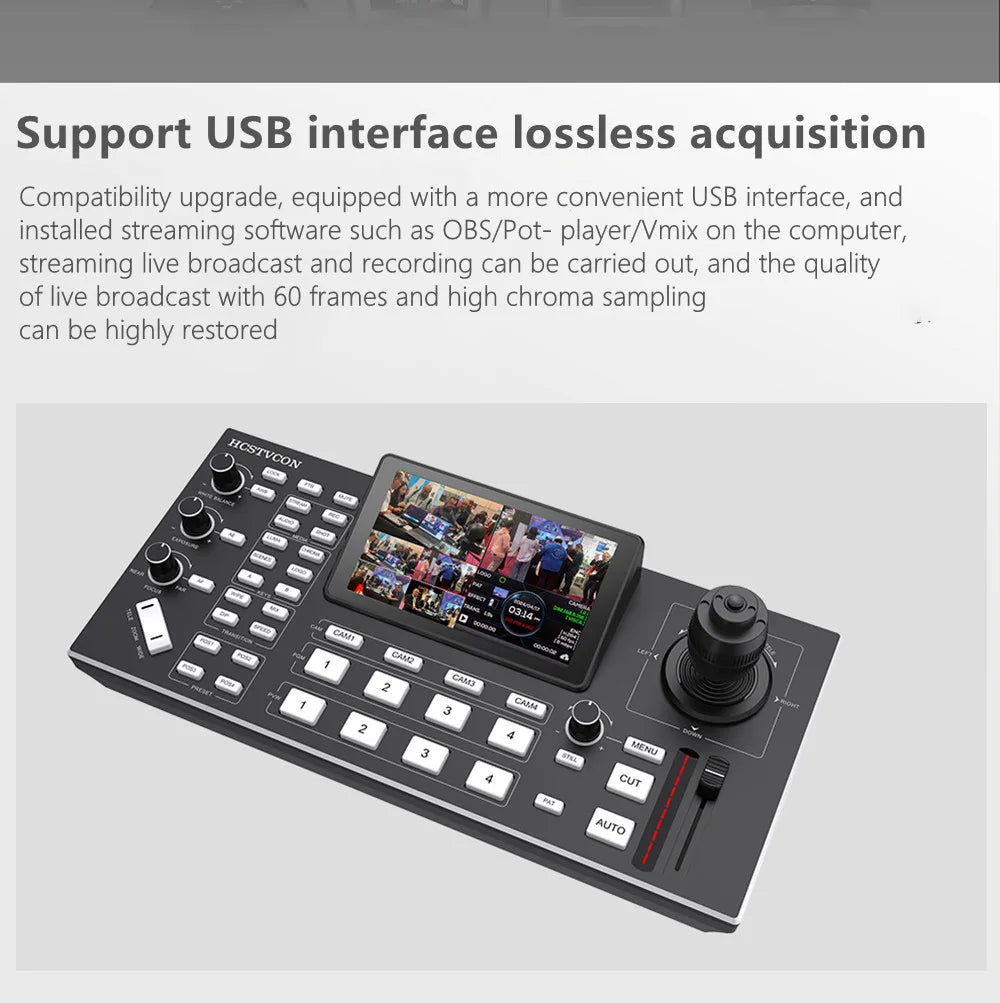

Output Interface: HDMI,USB

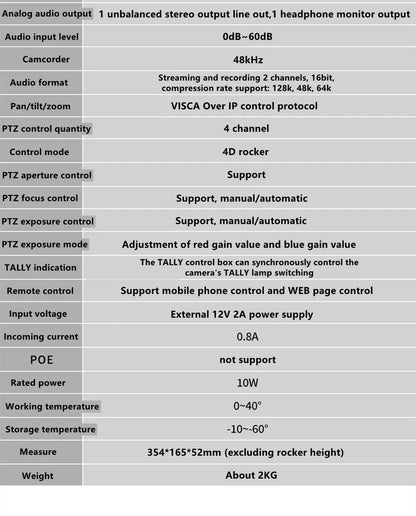

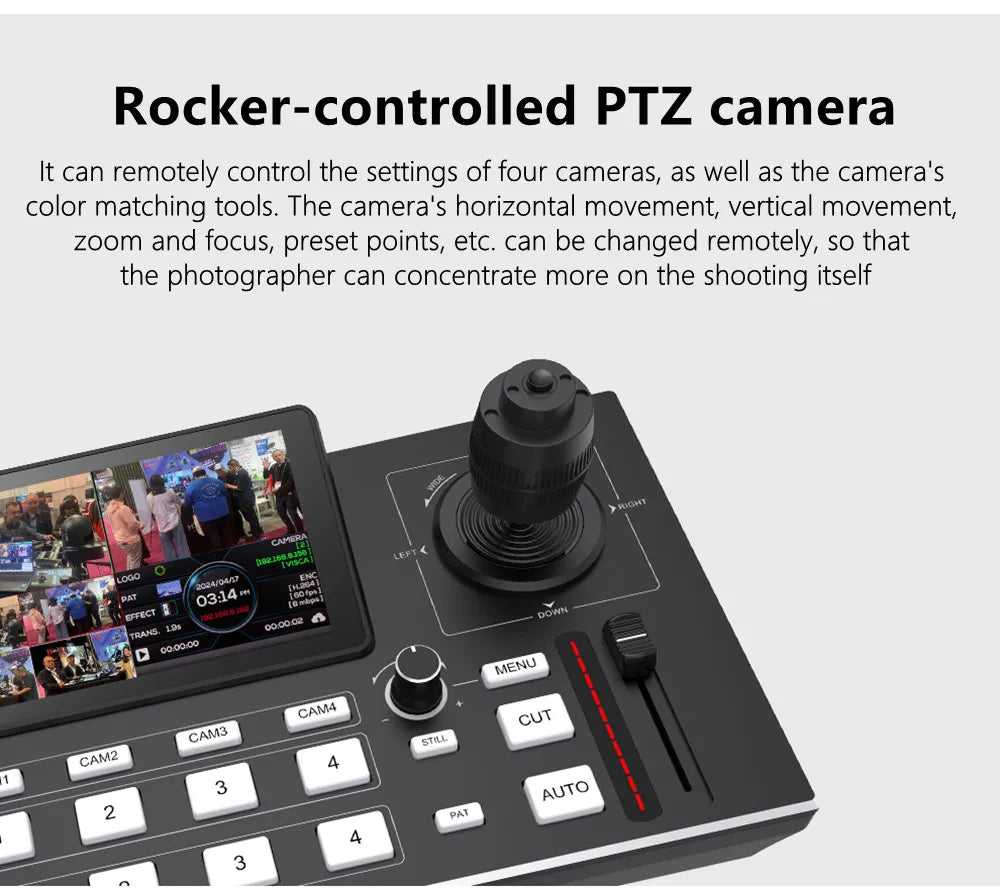

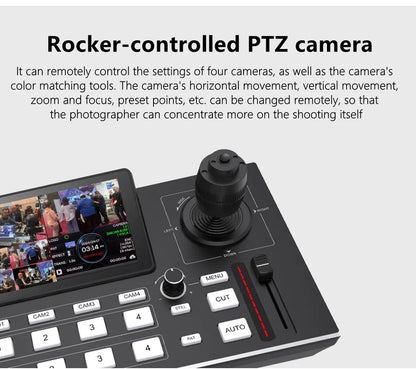

PTZ control: VISCA Over IP control protocol

PTZ control quantity: 4 channels

Rated power: 10W (maximum)

Remote control: Support mobile phone /WEB page control

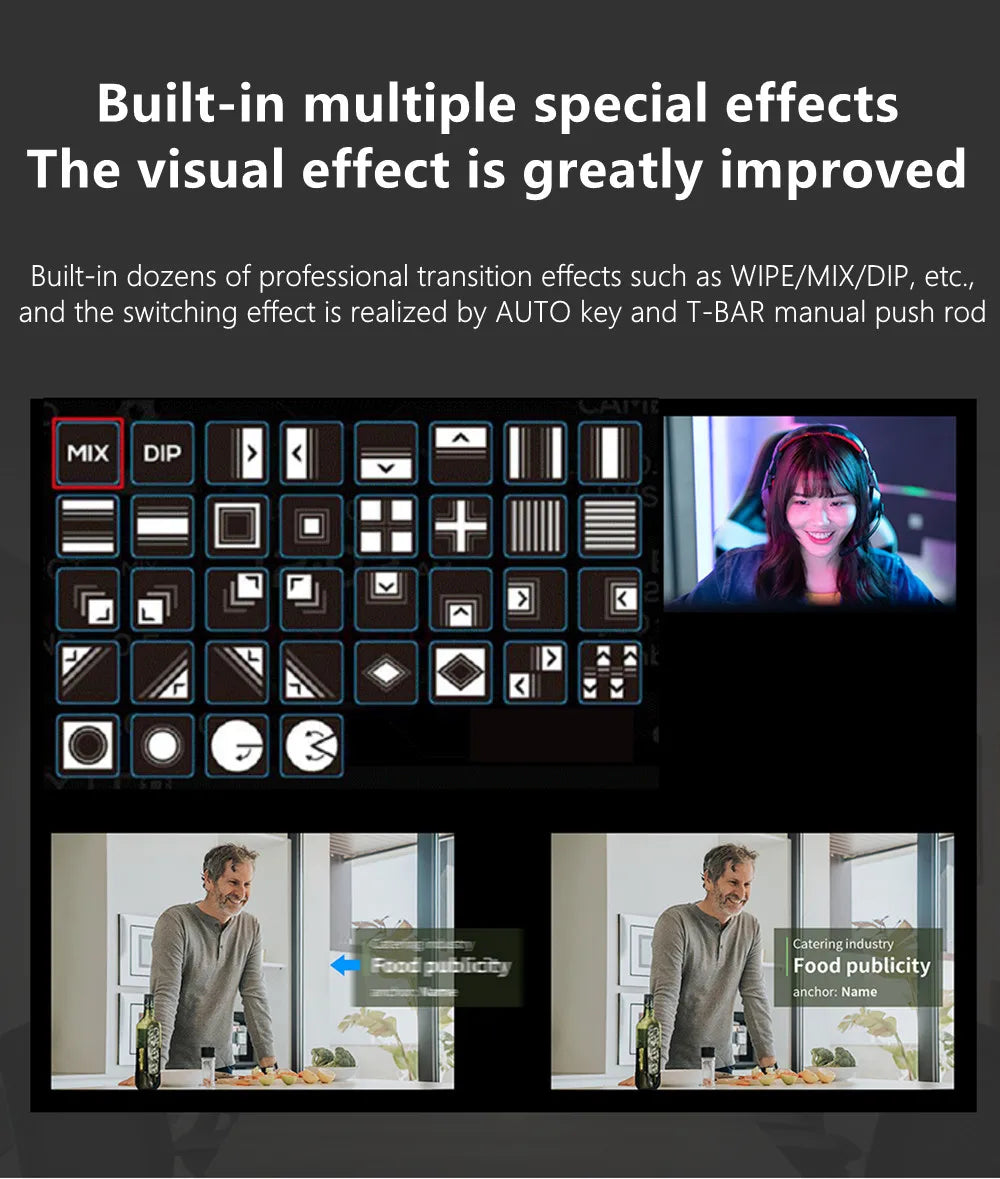

Special effects: 36 kinds of special effects

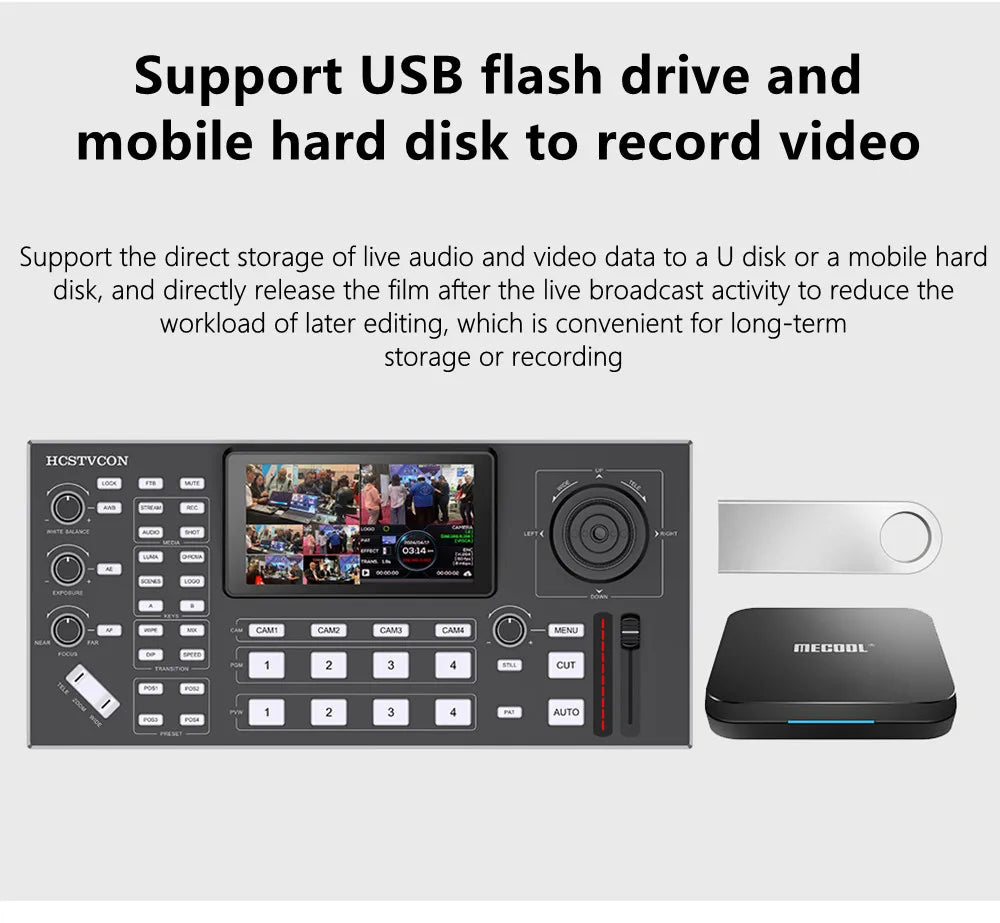

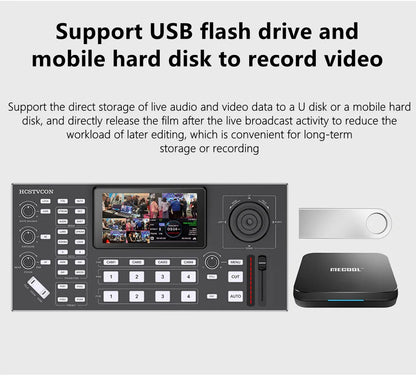

Storage medium: supports U disk storage (FAT32,NTFS,exFAT)

Support CUT hard cutting: Yes

Tally: Support (Tally control box needs to be purchased separately)

Trick switching: CUT & AUTO
