Features:

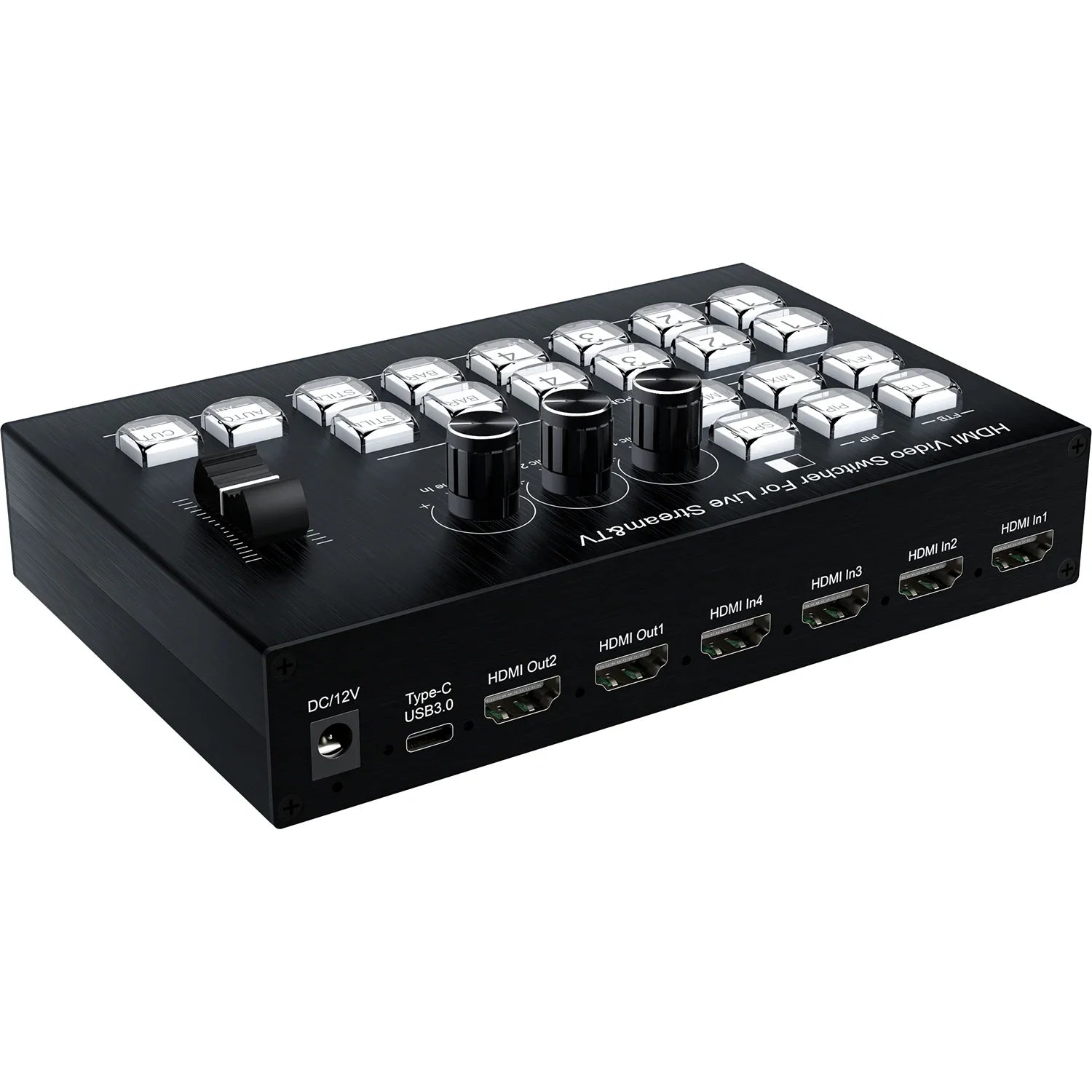

* 4 HDMI input; 2 HDMI output;
 * One Type-C 3.0 capture and push network traffic port, supports video format YUY2;

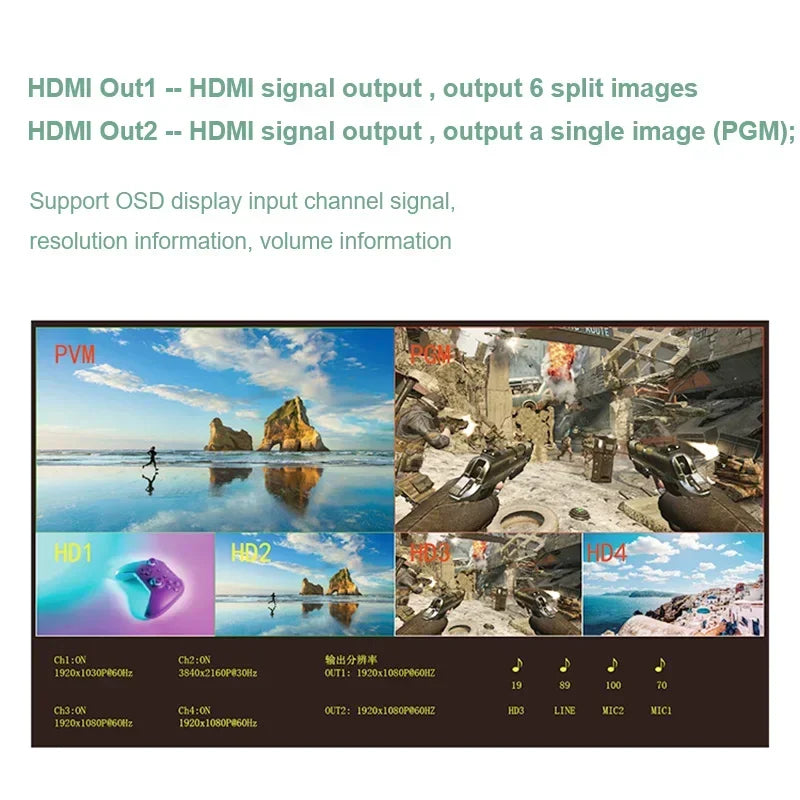

 * Support OSD display input channel signal, resolution information, volume information;

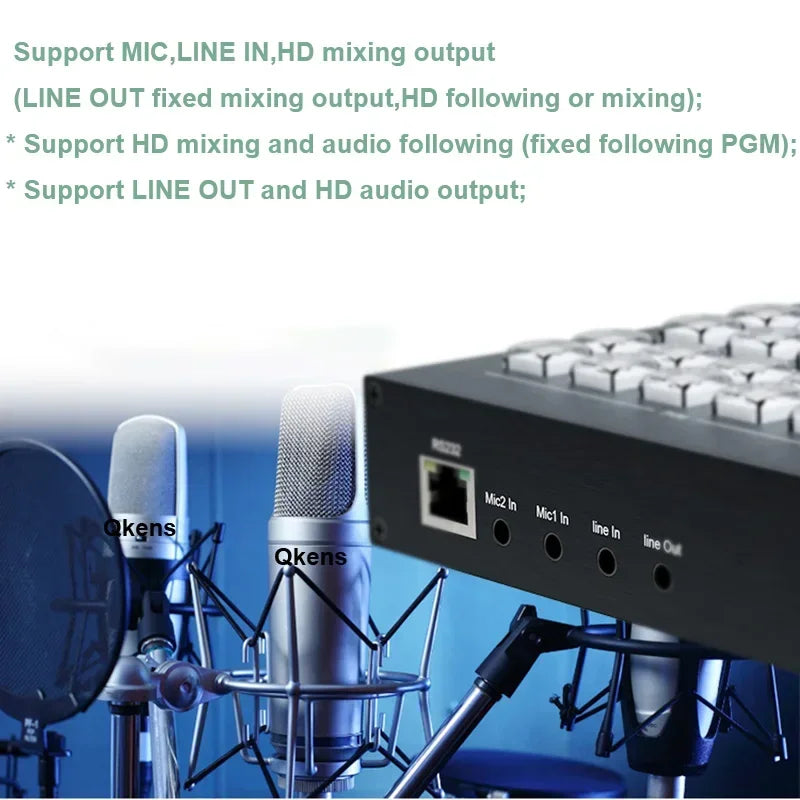

 * Support MIC,LINE IN,mixing output (LINE OUT fixed mixing output);
 * Support HD audio following (fixed following PGM);
 * Support left and right two segmentation (PGM on the left, PVW on the right);
 * Support LINE OUT and HD audio output;
 * Support power-off save Settings;

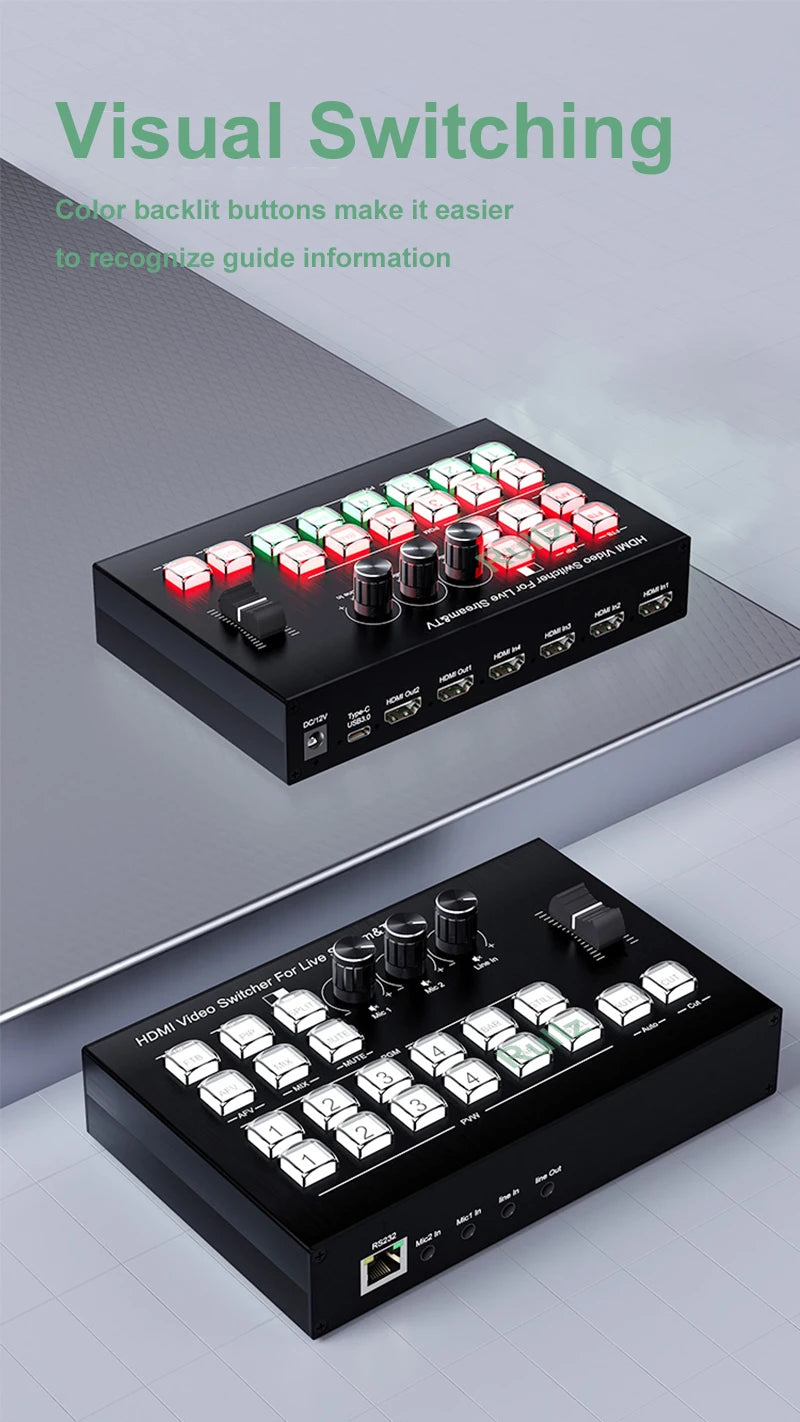

 * High quality keys, color backlight design

 HDMI input resolution ..................................................................................  1080P@60Hz
 HDMI output resolution ................................................................................. 1080P@60Hz
 Type-C 3.0 capture and push network traffic video format ............................ YUY2,JPEG
 Supports audio format ................................................................................................. PCM
 The maximum bandwidth transmission ............................................................... 148.5MHz
 Maximum transmission rate ............................................................................. 1.65 x3Gbps
 The input cable length ........................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length ......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
 Maximum working current ........................................................................................... 0.7 A
 Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
 Working temperature range ....................................................................... (-15℃ to +55℃)
 Size ..............................................................................................Approx. 180x115x52(mm)

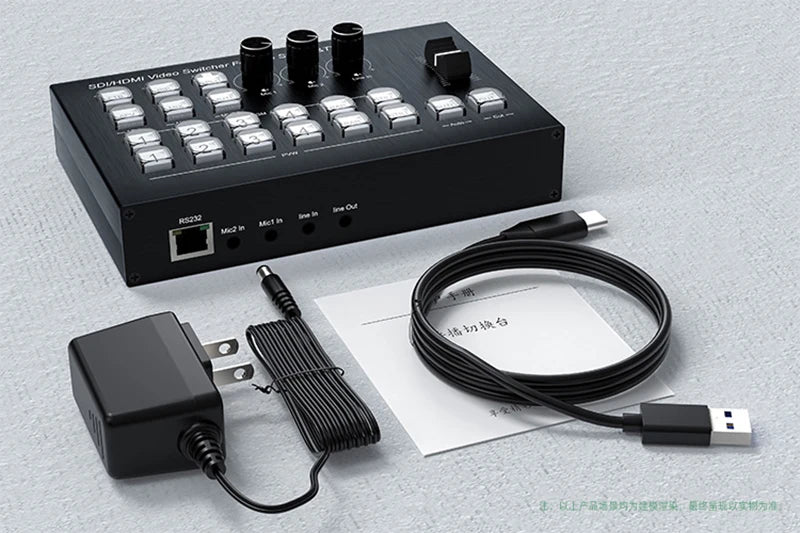

Package Content:

1. Video switcher for live streaming 1PCS
2. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs) 1PCS
3. DC/12V power adapter 1PCS
4. User manual 1PCS

Without retail box and other accessories,if any need,pls contact us before purchase.

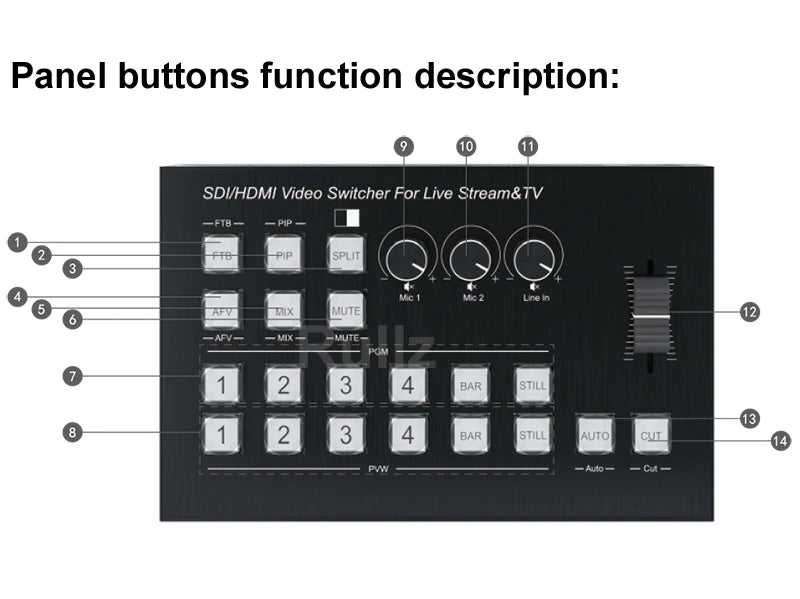

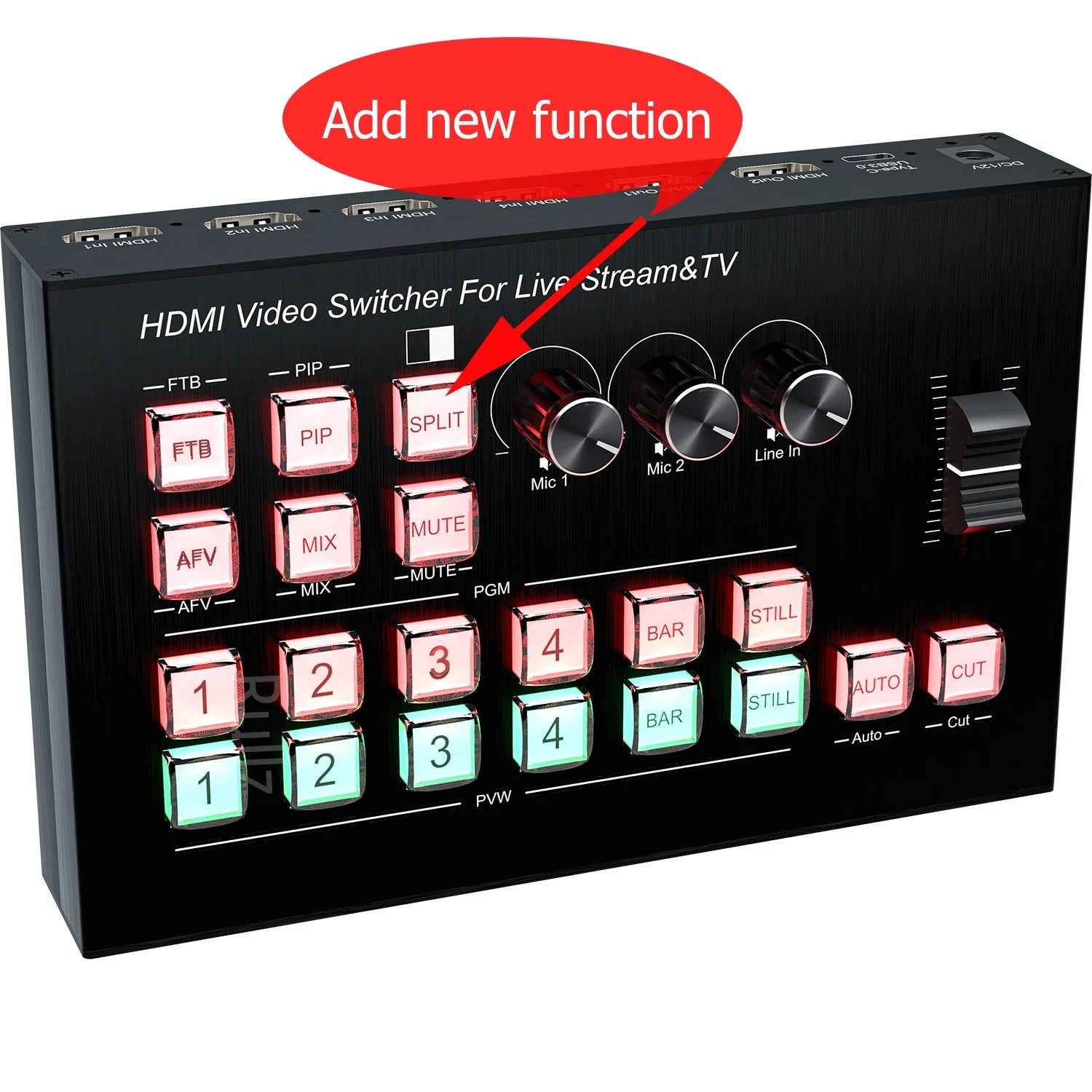

 1: FTB -- PGM turns on or off to black screen
 2: PIP -- Enter or exit picture-in-picture mode
    (PGM background, PVW small image, audio follows PGM);
 3: SPLIT -- Left and right two segmentation (PGM on the left, PVW on the right);
 4: AFV -- audio follows PGM image;
 5: MIX -- Audio mix (MIC1-2/Line in/HD);
 6: MUTE -- Turn on or off the mute;
 7: PGM_1 -- PGM image switched to HD1;     PGM_2 -- PGM image switched to HD2;
    PGM_3 -- PGM image switched to HD3;     PGM_4 -- PGM image switched to HD4;
    BAR -- PGM blue image turn on or off;
    STILL -- PGM image is frozen or unfrozen;
 8: PVW_1 -- PVW image switched to HD1;      PVW_2 -- PVW image switched to HD2;
    PVW_3 -- PVW image switched to HD3;      PVW_4 -- PVW image switched to HD4;
    BAR -- PVW blue image turn on or off;
    STILL -- PVW image is frozen or unfrozen;
 9: Mic1 -- Tap MIC 1 to turn on or off the Input volume, rotate to adjust the volume.
 10: Mic2 -- Tap MIC 2 to turn on or off the Input volume, rotate to adjust the volume.
 11: Line In -- Tap to turn on or off analog audio input , rotate to adjust the volume;
 12: Slider key - Fade in and out between PVW and PGM image;
 13: Auto -- Fade in and out between PGM and PVW image;
 14: Cut -- Quick switch between PGM and PVW image;
